1.0mm间距
1.0T-1-nY(TER)
.jpg "Optional title display")
- 连接器基本参数
- 产品型号：nY胶壳/TER端子
- 产品名称：1.0T-1-nY(TER)
- 所属类别：条形连接器
- 更新时间：2018-02-27
- 技术参数
- 材质说明
- 产品图形
- 详细描述
SPECIFICATIONS
*Voltage rating: 50V AC,DC
*Current rating: 1.0A AC/DC (AWG#28)
*Withstanding Voltage:500V AC/minute
*Insulation resistance:100MΩ/min
*Temperature range:-25C - +85C
*Contact resistance:20mΩ
*Voltage rating: 50V AC,DC
*Current rating: 1.0A AC/DC (AWG#28)
*Withstanding Voltage:500V AC/minute
*Insulation resistance:100MΩ/min
*Temperature range:-25C - +85C
*Contact resistance:20mΩ

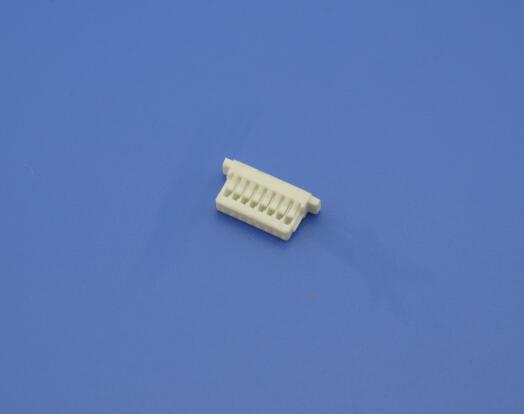

HOUSING
*Poles: 2-20
*Material:Thermoplastic UL94V-O White/Natural
*Q'TY: 1000 pcs/bag

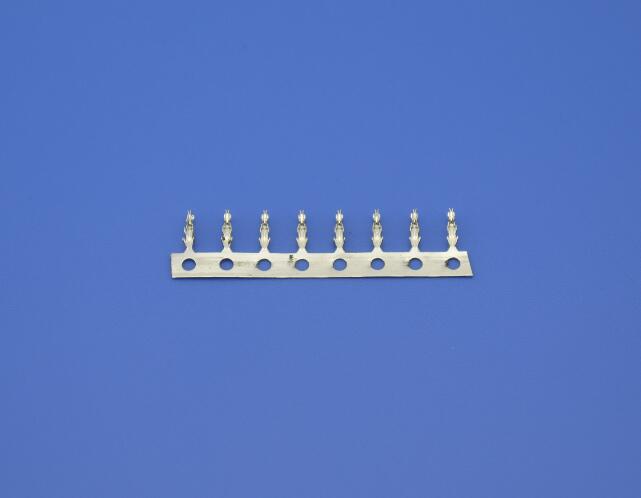

TERMINAL
*Wire Range:AWG#28-#32
*Material:Phosphor Bronze tin-Plated
*Reel Q'ty:20,000 pcs/reel
产品规格尺寸及材质请参考工程图面，详细资料请联系客服人员.
