1.0mm间距

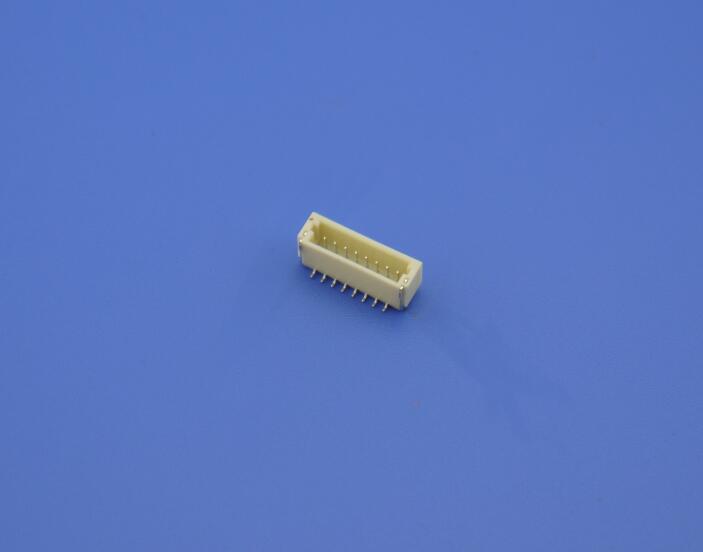

1.0T-1-nAB(AWB)
.jpg "Optional title display")
- 连接器基本参数
- 产品型号：nAB立贴/nAWB卧贴
- 产品名称：1.0T-1-nAB(AWB)
- 所属类别：条形连接器
- 更新时间：2018-03-06
- 技术参数
- 材质说明
- 产品图形
- 详细描述
SPECIFICATIONS
*Voltage rating: 50V AC,DC
*Current rating: 1.0A AC/DC (AWG#28)
*Withstanding Voltage:500V AC/minute
*Insulation resistance:100MΩ/min
*Temperature range:-25C - +85C
*Contact resistance:20mΩ
*Voltage rating: 50V AC,DC
*Current rating: 1.0A AC/DC (AWG#28)
*Withstanding Voltage:500V AC/minute
*Insulation resistance:100MΩ/min
*Temperature range:-25C - +85C
*Contact resistance:20mΩ
WAFER
*Poles: 2-20
*Material
Housing:Thermoplastic UL94V-O
Color:White/Natural
Pin:Phosphor Bronze Tin-Plated
Solder:Phosphor Bronze Tin-Plated
*Q'TY: 1000 pcs/Tube or Tape & Reel
产品规格尺寸及材质请参考工程图面，详细资料请联系客服人员.
